USB-C DAC and Transformer-Isolated DI

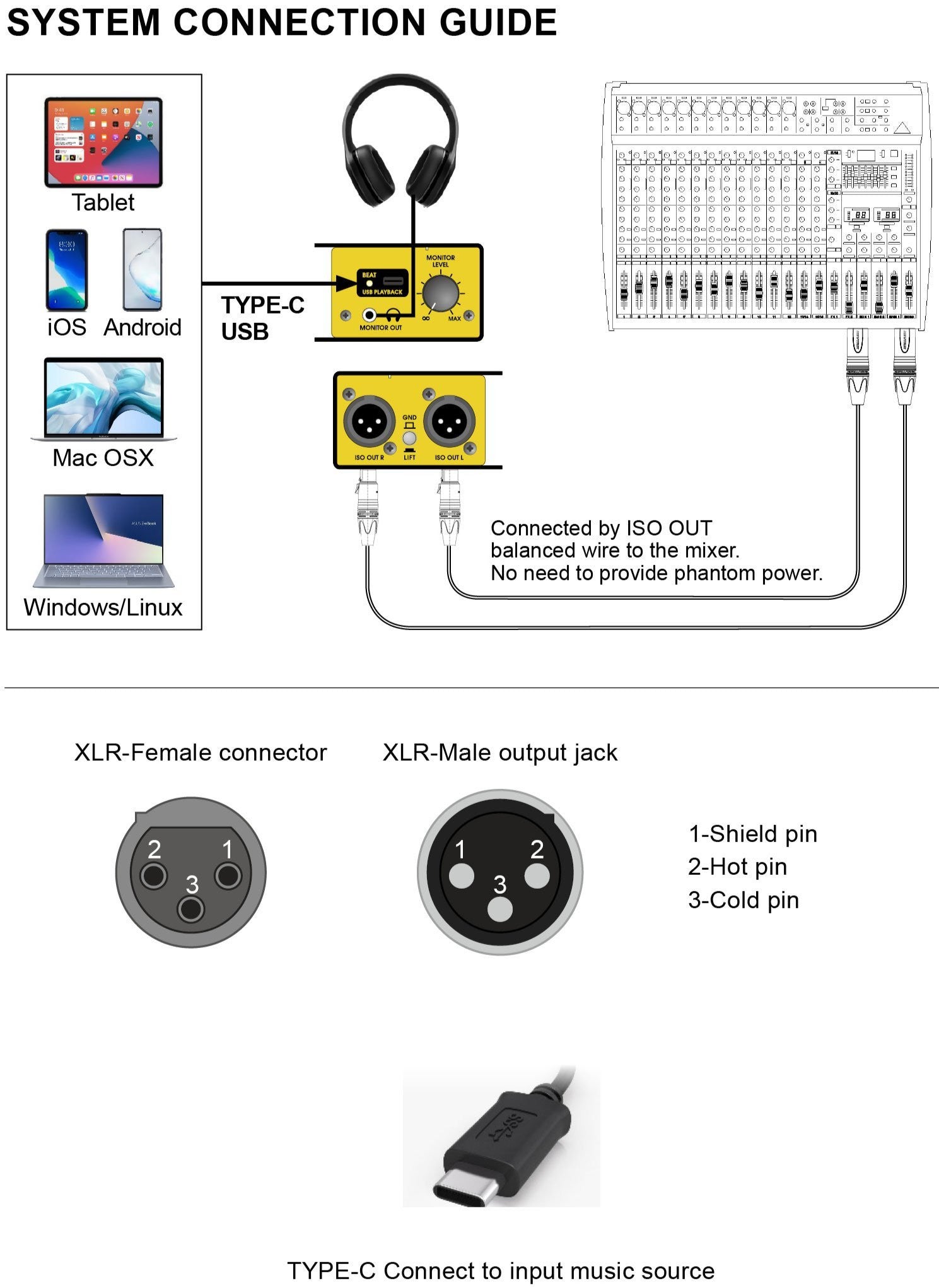

UNiKA PRO-USB converts digital USB audio from computers and compatible mobile devices to two balanced, transformer-isolated XLR outputs. It supports PCM audio up to 32-bit/192 kHz and native 2x DSD.
DAC and Monitoring

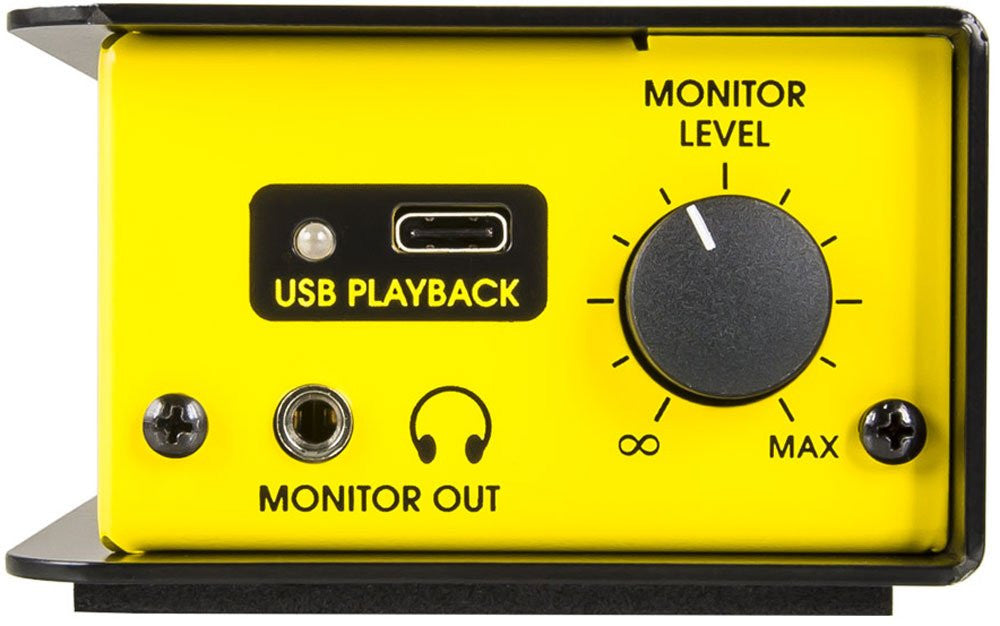

The interface combines a CT7601 USB bridge with a Cirrus Logic CS43131 DAC and headphone amplifier. A 3.5 mm monitor output with level control supports headphones from 16 Ω to 600 Ω.
Professional Outputs

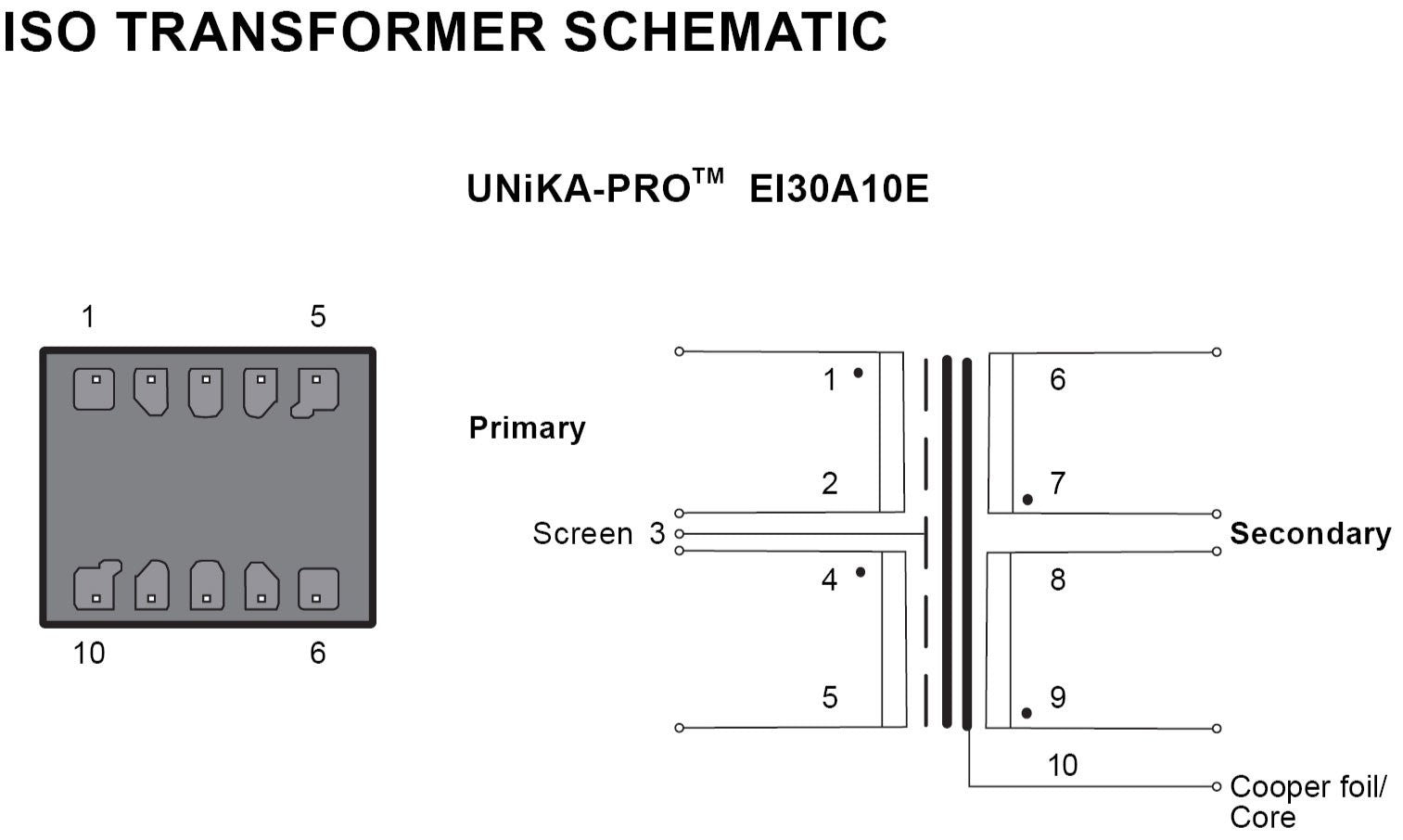

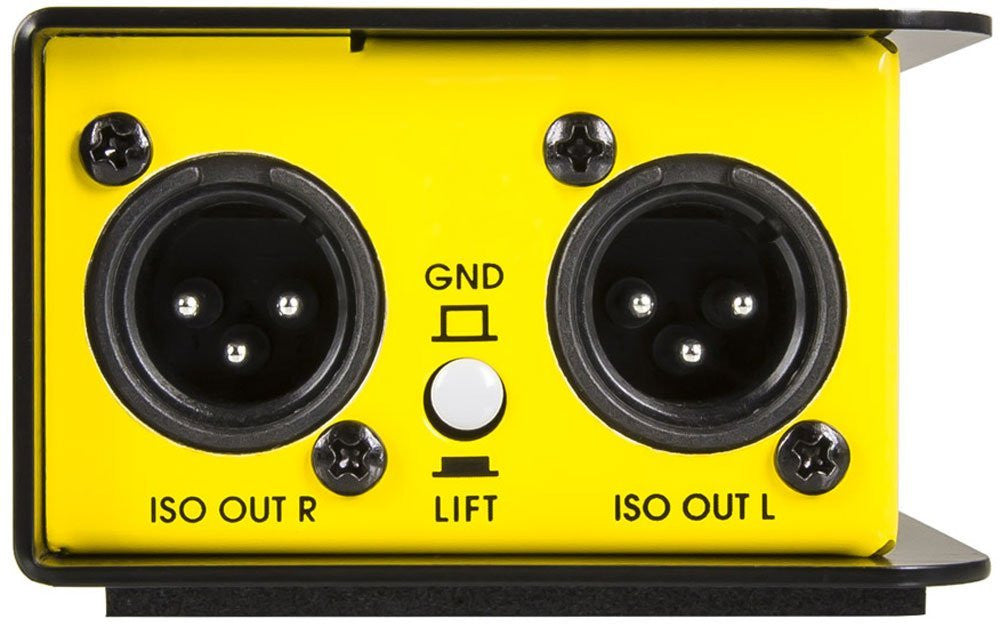

Each XLR output is transformer isolated using an UNiKA-PRO EI9AE3R3 1.25:1 transformer, with a shared GND/LIFT switch. Power is supplied through the USB-C connection.
Features:
- USB 2.0 Type-C input
- 32-bit/192 kHz PCM support
- Native 2x DSD support
- Transformer-isolated stereo XLR outputs
- Headphone output with level control
- Windows, macOS, iOS and Android compatibility
